Draytek Vigor2912 Series Dual WAN Router
Available Stock (QTY: 20+)
DV2912 $ 191.99 inc-gst
DV2912N $ 239.99 inc-gst
2 Year Nationwide Warranty.
Extended warranties available.
Pricing Excludes Shipping.
Draytek 2912 Series Business Class Routers with Load Balancing, VPN Endpoints,
Bandwidth Shaping, QOS, Firewall and DOS defence.
Product Overview
The Vigor2912 Series designed for the small office applications helps your businesses achieve the goals of business growth, innovation and responsiveness. This ideal VPN/firewall router replaces the simple Wi-Fi router offered by ISPs. The dual WAN load-balance and redundancy ensures your office to stay connected. The network security is realized by robust firewall and Web Content Filtering.
All your subscribed bandwidth can be smoothly allocated to the essential applications (e.g. VoIP) by the advanced QoS. The VPN tunnels cover the needs of the inter-office / remote access via multiple protocols. The secure Wi-Fi network enables the office environment ready for the trend of BYOD (Bring Your Own Device) to enhance the productivity. At last but not least, the Vigor2912 Series supports the IPv6 for the seamless migration.
Product Comparison

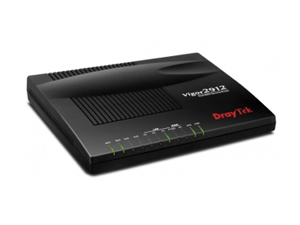

Draytek 2912 Wired Gigabit Router.

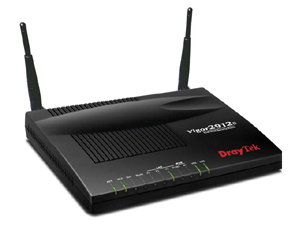

Draytek 2912N Wired Gigabit and Wireless N, 2.4 GHz.
Dual WAN load-balance and redundancy
The Vigor2912 Series offers two fast Ethernet ports as WAN interface (LAN port 1 can be configured as WAN 2.). You have the flexibility to choose different Internet feeds based on the local High Speed Internet plan offered by the ISP and get the reliable connection via dual WAN load-balance and redundancy. As enabling both WAN 1 and WAN 2, 2 WANs share Internet traffic requirements of your organization (load-balance). During downtime, you will always have an access to the Internet even if one of the WAN fails (redundancy).
USB 2.0 port for 3G/4G LTE mobile, FTP drive and network printers
The USB port can be used for the connection of 3G/4G mobile broadband dongle as the USB WAN (WAN 3). The USB WAN interface can also be the primary access if the local fixed line service hasn’t been deployed yet. Another two popular applications are the FTP drive and network printers for the office.
Object-based firewall with Web Content Filtering
The Vigor2912 Series supports Object-based SPI firewall to set of Call/Data Filters and DoS/DDoS prevention. You can use pre-define objects or groups for IP, service type, keyword, file extension, etc., and mix these with the Time Scheduler or the VLAN groups as required. The Web Content Filter, powered by the CYREN Web WCF of Content Security Management (CSM) eases configurations to prevent access to inappropriate sites. The IM/P2P/Protocol filter and URL Content Filter are also available in CSM. Your network security is fully managed by the Vigor2912 Series.
Bandwidth management with intelligent VoIP QoS
Small offices normally choose the affordable Internet plan instead of increasing the bandwidth over 100Mbps. Hence, how to reserve and prioritize bandwidth for the essential applications is critical to operation. The Vigor2912 Series has VoIP QoS to guarantee the priority for VoIP calls automatically once VoIP calls was detected. In addition to QoS, you can manage the bandwidth consumption of every employee based on the individual IP via Session Limit and Bandwidth Limit. The Smart Bandwidth Limit allows you to only set bandwidth reservation for PCs operated essential tasks. Other PCs have the session limitation to prevent the inappropriate usages (e.g. P2P download). Once exceeding the limitation, their speed rates will be downgrade to your customized numbers. You can guarantee all subscribed bandwidth to have proper usage.
VPN for secure inter-office / remote access
The Vigor2912 series support up to 16 LAN-to-LAN VPN tunnels secure remote data access, such as inter-office, or home-office communication with multi-protocols: PPTP /IPSec/L2P/L2TP over IPSec. Its advanced AES/DES/3DES encryption and IKE Authentication provide you with strong security. The dual WAN feature can not only allow you to run load-balancing but also backup. If the main VPN fail, the second VPN takes over.
User Management
The “User Management” implemented on your router firmware can allow you to prevent any computer from accessing your Internet connection without a username or password. You can set scheduler or maximum usage time to your employees within office network. The user accounts can also be restricted by any other aspect of the firewall rule on a user-by-user basis.
Working with DrayTek Network Traffic Analyzer and Central Management
Vigor2912 series support DrayTek’s SmartMonitor network traffic analyser (up to 30 users), which captures actual live data of activities in your managed network, such as the content of MSN entering to or out of your network. You can track specified files download/upload or view statistics on data type activities to realize what corporate related information have been released accidentally or on purpose. If your main office self-hosts VigorACS SI central management, your Vigor2912 series can be remotely managed for firmware upgrade, alarm of disconnection, VPN establishment and other settings.
Feature Summary
NBN (National Broadband Network – Australia) Ready to connect to NTD (Network Termination Device)
2 x Fast Ethernet WAN ports & 1 x USB port for 3.5G / 4G Mobile with Load Balance and Fail-Over
4 x Fast Ethernet LAN ports with 30,000 NAT sessions and IPv6
Object-based SPI Firewall, Content Security Management (CSM) and QoS
16 x VPN tunnels with hardware accelerator & VPN Fail-Over
1 x USB ports for 3.5G / 4G modem, USB disk storage & network printer
Support Smart Monitor Traffic Analyser (up to 30-nodes)
Support TR-069 for VigorACS SI Central Management
2 years back to base warranty
Ethernet WAN
IPv4- DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1p/q Multi-VLAN Tagging
IPv6
Tunnel Mode: PPP, TSPC, AICCU, 6in4, 6rd
Dual Stack:DHCPv6 Client, Static IPv6, DSLite*
USB WAN
PPP
Outbound Policy-based Load-balance
WAN Connection Failover
30,000 NAT Sessions
Firewall
Multi-NAT, DMZ Host, Port-Redirection and Open Port
Object-based Firewall
MAC Address Filter
SPI (Stateful Packet Inspection) (Flow Track)
DoS/DDoS Prevention
IP Address Anti-spoofing
E-mail Alert and Logging via Syslog
Bind IP to MAC Address
Time Schedule Control
IPv6 Firewall
User Management
VPN Endpoints
Up to 16 VPN Tunnels
Protocol : PPTP, IPSec, L2TP, L2TP over IPSec
Encryption : MPPE and Hardware-based AES/DES/3DES
Authentication : MD5, SHA-1
IKE Authentication : Pre-shared key and Digital Signature (X.509)
LAN-to-LAN, Host-to-LAN
IPsec NAT-traversal (NAT-T)
Dead Peer Detection (DPD)
VPN Backup Mode
DHCP over IPSec
VPN Pass-through
VPN Wizard
mOTP
USB Interface
Printer Sharing
File Sharing
Support FAT32 File System
Support FTP Function for File Sharing
Support Samba for File Sharing
3.5G (HSDPA)/4G (LTE)* as WAN3
Bandwidth Management
QoS
Guarantee Bandwidth for VoIP (VoIP Qos)
Class-based Bandwidth Guarantee by User-defined Traffic Categories
DiffServ Code Point Classifying
4-level Priority for Each Direction (Inbound/Outbound)
Bandwidth Borrowed
Bandwidth/Session Limitation
Layer-3 (TOS/DSCP) QoS Mapping
Smart Bandwidth Limitation (Triggered by Traffic/Session)
Network Management
Web-based User Interface (HTTP/HTTPS)
Quick Start Wizard
CLI (Command Line Interface, Telnet/SSH)
Administration Access Control
Configuration Backup/Restore
Built-in Diagnostic Function
Firmware Upgrade via TFTP/FTP/HTTP/TR-069
Logging via Syslog
SNMP V2/V3
Management Session Time Out
Two-level Management (Admin/User Mode)
External Device
TR-069
Support Smart Monitor (Up to 30 PCs)
Content Security Management
IM/P2P Application
URL Content Filter :
URL Keyword Blocking (White List and Black List)
Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
Excepting Subnets
GlobalView Web Content Filter (Powered by CYREN-90)
Network Features
DHCP Client/Relay/Server
RADVD for IPv6
DHCPv6 Server
Static IPv6 Address Configuration
IGMP Proxy V2/V3
IGMP Snooping
Dynamic DNS
NTP Client
RADIUS Client
DNS Cache/Proxy
UPnP 30 Sessions
Routing Protocol:
Static Routing
RIP V2
VLAN Tagging(802.1q) on LAN*
System Maintenance
DHCP Client/Relay/Server
