Fanvil X6 Senior Executive IP Phone

$ 250.99 Inc-Gst

Available Stock (QTY: 20+)

1 Year Nationwide Warranty

Extended warranties available

Prices Exclude Shipping

PSU Not Included

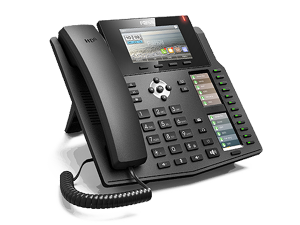

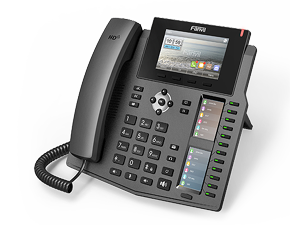

FANVIL X6 Senior Executive Colour IP Phone.

A New Enterprise Colour-LCD Phone with Intelligent DSS Key-mapping LCD Display.

The new Fanvil X6 IP Phone is a high-end enterprise desktop phone which comes with 2 intelligent DSS Key-mapping colour LCDs to increase enterprise users’ productivity

The X6 IP Phone is a dynamic business communications solution for executives and professionals. This phone offers a large 4.3 inch colour screen which can also decode the video from IP camera and door phone.

The X6 is also with Fanvil’s Optima HD Voice technology and wideband codec of Opus for unparalleled audio clarity. Phone users will think they are sitting in the same room with one another. The phone uses Gigabit Ethernet technology for rapid call handling. Plus, it works in conjunction with Bluetooth USB Dongle and USB recording features.

4.3″ Main Colour Screen + 2 x 2.8”DSS Screen, Smart and Friendly User Interface. The new X6 combines the advantages of existing enterprise phone UI design experience with colour screen.

The UI appearance and operating experience have a qualitative leap.

Highlights

2 DSS Key-mapping LCD – 12 DSS keys corresponded to the
LCD display to provide dynamic DSS/BLF functions up to
Five pages at virtualized total 60 DSS keys.
Gigabit Ethernet – 10/100/1000Mbps Ethernet with POE enabled.
Economic and Environmental Friendly design with Elegant housing, with
High-resolution TFT colour display, delivering a rich visual experience.
High Interoperability – Compatible with major platforms:
3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.

Generic

6 SIP Lines

HD Voice

Support receiving Video call

POE Enabled

3 LCDs (Main + DSS)

Handset(HS) / Hands-free(HF) / Headphone(HP) mode

Intelligent DSS Keys

Optional External Power Supply

Industrial Standard Certifications: CE/FCC

Call Features

Call out / answer / reject

Mute / Unmute (microphone)

Call Hold / Resume ? Call Waiting

Intercom

Caller ID Display

Speed Dial

Anonymous Call (Hide Caller ID)

Call Forwarding (Always/Busy/No Answer)

Call Transfer (Attended/Unattended)

Call Parking/Pick-up (depending on server)

Redial

Do-Not-Disturb (per line / per phone)

Auto-Answering (per line)

Voice Message (on server)

Local 3-way Conference ? Hot Line ? Hot-Desking

Phone Features

Phone book (1000 entries)

Remote Phone book (XML/LDAP)

Call log (1000 entries, in/out/missed)

Black/White List Call Filtering

Screensaver

Voice Message Waiting Indication (VMWI)

Programmable DSS/Soft keys ? Network Time Synchronization

Support Bluetooth headset (Through USB Dongle BT20)

Support Plantronics Wireless headset (Through Plantronics APD-80EHS Cable)

Support Recording (Through Flash Drive)

Action URL / Active URI

CSTA

Video

Video codec: H.264

Video call resolution: QCIF / CIF / VGA

Audio

HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)

Wideband ADC/DAC 16KHz Sampling

Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR,iLBC,Opus

Wideband CODEC: G.722, AMR-WB, Opus(16KHz)

Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length

Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)

Background Noise Estimation (BNE) / Noise Reduction (NR)

Packet Loss Concealment (PLC)

Dynamic Adaptive Jitter Buffer up to 300ms

DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass

IP Configuration: Static / DHCP / PPPoE

Network Access Control: 802.1x

VPN: L2TP (Basic Unencrypted) / OpenVPN

VLAN

LLDP

QoS

RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

SIP2.0 over UDP/TCP/TLS

RTP/RTCP/SRTP

STUN

DHCP

LLDP

PPPoE

802.1x

L2TP (Basic Unencrypted)

OpenVPN

SNTP

FTP/TFTP

HTTP/HTTPS

TR069

RFCs:

354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976

/3261/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/

5865

Deployment & Maintenance

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP/PNP/TR069

Web Management Portal

Web-based Packet Dump

Configuration Export / Import

Phone book Import/Export

Firmware Upgrade ? Syslog

Physical Specifications

Main LCD x1: 4.3 inch (480×272) colour-screen LCD

DSS Key-mapping LCD x2: 2.4 inch (240×320) colour-screen LCD

Keypad: 46 keys, including

4 Soft-keys 8 Function keys: Hold, Call forward, Conference,

Phone book, Call log, MWI, Headset, Redial)

4+1 Navigation keys + OK

12 Standard Phone Digits keys

3 Volume Control keys, Up/Down/Mute(Microphone)

1 Hands-free key

12 DSS Keys with tri-colour LED

1 Page-Switch (PS) key

HD Hands-free Speaker (0 ~ 7KHz) x1

HD Hands-free Microphone (0 ~ 7KHz) x1

HD Handset (RJ9) x1

USB Port x1 (Connect with BT USB dongle or Flash Driver)

Standard RJ9 Handset Wire x1

1.5M CAT5 Ethernet Cable x1

RJ9 Phone Jacket x2: Handset x1, Headphone x1

RJ45 Ethernet Jacket x2: Network x1 (802.3AF PoE class 3), PC x1 (Bridged to Network)

Main Chipset: Broadcom

DC Power Input: 12V/1A

Power Consumption: POE: Idle –3.12~ 3.6W, Peak – 6~10.1W, Adapter: Idle –1.97~ 2.32W, Peak –4.2~7.1W

Working Temperature: 0 ~ 40?

Working Humidity: 10 ~ 95%

Back Rack x1: Desktop Stand (Two angles)

Colour: Black

Device Dimensions: 244 x 201 x 169.5mm (Desktop Stand)

Gift Box Dimensions: 315 x 270 x 65mm

Outer CTN Dimensions: 315 x 270 x 65mm (10 PCS
