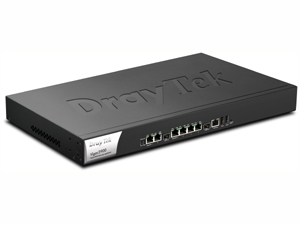

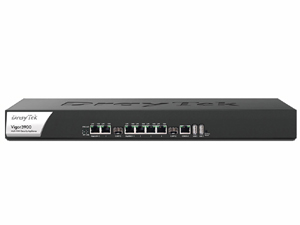

Draytek Vigor3900 Multi-WAN Router

Available Stock (QTY: 5+)

DV3900 $ 1124.99 Inc-Gst

2 Year Nationwide Warranty.

Extended warranties available.

Pricing Excludes Shipping.

Draytek Vigor DV3900, 5 x Gigabit WAN Load Balancer with SFP.

Advanced Business Class Firewall Network Router.

2 year nationwide back to base warranty

The Vigor3900 Central site VPN gateway is an enterprise-level VPN concentrator providing security and cost savings benefits for business through flexible, reliable, and high-performance LAN-to-LAN and remote-access solutions. Vigor3900 not only offers hundreds of VPN tunnels compatible with multiple VPN protocols, such as PPTP/L2TP/IPsec/L2TP over IPSec to satisfy LAN-to-LAN and remote secure communication needs, but also provide SSL VPN* connectivity to better facilitate remote users to access corporate database.

With Gigabit Ethernet LAN/WAN and active fiber interfaces, Vigor3900 offers unprecedented data transmission speed for mission-critical applications and do load-balancing for WAN and VPN failover to enhance performance, redundancy and reliability of business operation.

Product Overview

NBN Ready to connect to NTD
5 x Gigabit WAN ports (4 x Ethernet & 1 x SFP) &
2 x USB ports for 3G / 4G Mobile with Load Balance and Fail-Over
3 x Gigabit LAN ports (2 x Ethernet & 1 x SFP) with 120,000 NAT sessions and IPv6
Object-based SPI Firewall, Content Security Management (CSM) and QoS
High-Availability (with CARP) ensuring 24/7 system uptime
500 x VPN tunnels with VPN load balance and redundancy,
Central VPN Management & 100 x SSL VPNs
Up-to 800Mbps site-to-site IPsec VPN throughput
2 x USB ports for 3G / 4G modems & temperature sensor
Support Smart Monitor Traffic Analyser (up to 500-nodes)
Support TR-069 for VigorACS SI Central Management
Temperature Monitoring (optional: USB Thermometer)

Enterprise-level central site VPN gateway

By using VPNs to establish secure, end-to-end private network connections over a public networking infrastructure, business can reduce considerable communications/travels expenses and still remain seamless connectivity between central and remote sites including mobile workers, telecommuters, and extranet users by accessing corporate database any time in anywhere.

Vigor3900 with a dedicated VPN co-processor, the hardware encryption of AES/DES/3DES and hardware key hash of SHA-1/MD5 are seamlessly handled, thus maintaining maximum router performance. For remote sites and inter-office links, the Vigor3900 supports up to 500 simultaneous VPN tunnels (such as IPsec/PPTP/L2TP protocols). The site-to-site VPN throughput can reach up-to 800Mbps (IPsec). The SSL VPN* by using X.509 certificate-based authentication is also available for tele-worker applications.

Without the necessity of installing VPN client on individual PC, the Secure Socket Layer (SSL) virtual private network (VPN) facility lets remote workers connect to the office network at any time. SSL is supported by standard web browsers such as FireFox and IE. For users of small offices and tele-workers who need to access enterprises’ internal applications, file server and file sharing.

There are up to 20 simultaneous tunnels on Vigor3900 for host-to-LAN (remote dial-in) application.

Centralized Management

With F/W 1.0.7, the embedded Central VPN Management (CVM) will let network administrator register up to 16 remote routers and also run concurrent remote management over 16 remote routers.

In short, Vigor3900 gives a highly secure but flexible network for the multi-site business operation and retain corporate HQ’s ultimate control of the system.

High performance gigabit and fiber interfaces

Vigor3900 with four Gigabit Ethernet-ports and one SFP active fiber port as WAN interfaces allows corporation to subscribe internet connection service from up-to five different ISPs. These five WAN interfaces can do load-balancing to facilitate bandwidth usage in the connection uptime and failover backup during downtime to prevent temporary service outage from subscribed ISP(s). In addition, Vigor3900 with two Gigabit Ethernet-ports and one SFP active fiber port as LAN interfaces facilitates large data and business applications exchange to reach corporate intranet client ends.

The Vigor3900 also supports Open Shortest Path First (OSPF) to calculate the route metric (Up-to Version 2).

Vigor3900 is also the future proof procurement as considering tech refresh of your central site or major regional branches. From infrastructure viewpoint, Vigor3900 is not only working with current IPv4 network but also compliant with future IPv6 migration. From service viewpoint, corporation begins to turn to virtualization and cloud computing services when the speed of WAN connection is rising to reduce overhead of IT and enhance productivity.

Stable inline reliability

Vigor3900 offers High Availability by Common Address Redundancy Protocol (CARP) to prevent single point of failure. The network administrator can configure another Vigor3900 as the passive standby backup device in case of failure of main Vigor3900. Moreover, administrator can enable reciprocal backup functionality for multiple active Vigor3900 that includes load balancing configuration and user definable backup priorities.

The advance Load Balance and Failover features of Vigor3900 can balance traffic from your LAN to multiple internet connections (WANs). The easy-to-use web user interface allows administrator to configure comprehensive network settings in minutes to optimize bandwidth usage and establish a reliable network based on actual operation needs.

Traffics from the LAN are shared out on a round robin basis across the available WANs. Vigor3900 can monitor each WAN connection, using an IP address you provide, and if Vigor3900 monitors fails, a failover configuration will take place and typically just feeds all traffic down the other connection(s). Especially, the pooling configuration concept allows administrator to select desire WAN ports as load-balancing pools with weight setting capability / failover pools and modify policy if necessary and then configure each WAN port with detail network information that helps administrator build a substantial network to facilitate daily operation with versatility, scalability and reliability.

Highly secure and efficient corporate application management

Vigor3900 with Certificate Management function including Root CA, Trusted CA and Local CA is a comprehensive Certificate Authority (CA) server. To prevent eavesdropping, Vigor3900 enforces advance encrypted mechanism implemented a pair of public and private keys as exchanging certificate between server and client instead of using pre-shared key which might be stolen by hackers during interchange. Vigor3900 offers flexible methods to grant certificate for any trusted applicant who may use it for the VPN connection.

Administrator of Vigor3900 can choose to accept/sign client’s CA certificate or generate a signed CA certificate through building root CA function for client’s VPN connection needs in case some clients do not have CA certificate in hand. As a result, Certificate Management by Vigor3900 offers secure and flexible ways for business certification process.

The DoS/DDoS prevention and URL/Web content filter strengthen the security outside and inside the network. They can block the HTTPS web access well with the integration of the object-based firewall setting. The enterprise-level CSM (Content Security Management) enables users to control and manage IM (Instant Messenger) and P2P (Peer-to-Peer) applications more efficiently. The CSM hence prevents inappropriate content from distracting employees and impeding productivity. Furthermore, the CSM can keep office networks threat-free and available. The Vigor3900 supports authentication by the PPPoE server with wire-speed Internet Access capability to LAN users (e.g. employees). This feature saves a lot of time compared with IP-bind-MAC method to benefits the network administrators.

Quality of Service (QoS) function of Vigor3900 implemented Ingress and Egress Filter Rules monitoring LAN/WAN incoming and outgoing data packets. These rules can prevent unwanted data packets from outside to access corporate network as well as distribute corporate data to non-recognizable destinations. The subscribed bandwidth wouldn’t be wasted on useless data packet exchange activities and may reduce the risk of damage corporate network or confidential information leakage. Moreover, Vigor3900 has eight classes of priority level settings which allow administrator to better prioritize the importance of bandwidth usage in detail.

Administrator can use bandwidth limitation to grant different bandwidth to different workgroups based on their main job function which can be viewed as macro view of bandwidth allocation. In the micro view, administrator can define different sessions through session limitation to individual client device based on IP address in each workgroup. For instance, Sales Dept. in total might need the larger bandwidth than others for better serving customers. However, sales assistants could be granted minimum sessions because they don’t need to interact with customers directly to facilitate their jobs.

Easy-to-use centralized management

Vigor3900 embedded with an easy-to-use user interface shorten administrator’s learning curve to adopt its management mechanism to control CO side network and hundreds VPN connections of remote sites. By the easy-to-use user interface, business doesn’t need to allocate the highly experienced technician as the administrator and can save training cost/time for recruiting new hire. Besides, Vigor3900 compliant with TR-069 protocol can be managed by VigorACS SI centralized management system that makes you have the choice to outsource IT management to System Integrator who can provide both Internet access service (last mile license from ISP/Telco) and device remote management/diagnostic services to stay focused on business essentials

HARDWARE

Interface

WAN:

4 Gigabit Ethernet

1 SFP slot

LAN:

2 Gigabit Ethernet

1 SFP slot

2 USB ports

1 console port

Factory Reset Button

Power On/Off Switch

Power

Max. Power Consumption: 20 watts

Temperature

Operating: 0 ~ 45°C

Storage: -10°C ~ 70°C

Humidity

Operating: 10% ~ 90%

(non-condensing)

Dimension (mm)

443(L) x 285(W) x 45(H)

WAN

Ethernet Connection (IPv4)

PPPoE Client

DHCP Client

Static IP

PPTP/L2TP

802.1Q VLAN Tagging

(Up to 50 profiles)

Triple-Play Applications

Ethernet Connection (IPv6)

PPP

DHCPv6 Client

Static IPv6

Load Balance

IP-based Load Balancing

Session-based Load Balancing

Custom Weight

Inbound Load Balancing

Failover

Failover by Link Failure

Connectivity Detection

ARP

Ping Probe

High Availability

Active-Standby Method

Hot-Standby Method

LAN MANAGEMENT

VLAN

Up to 64 VLAN

DHCP Server

Up to 50 IP Subnet

DHCP Server

PPPoE Server

Bind-IP-to-MAC (DHCP Reservation)

DNS Control

Local Name Server

Hotspot Portal

Authentication: Local User Profile, Guest Profile, RADIUS, LDAP, SMS PIN

Landing Page: URL Redirection, Bulletin Board

Mobile Device Blocking

Custom Portal Page

Walled Garden

ROUTING

Static Route

200 IPv4 Static Routes

200 IPv6 Static Routes

Dynamic Routing

RIPv1, v2

OSPF

BGP

Policy Routing

120 Route Policy

Criteria: Protocol, Source IP, Destination IP, Destination Domain Name, Destination Country, Destination Port

Failover options

Scheduled Enable/Disable

VPN

Performance

Up to 500 concurrent tunnels

Max.100 concurrent SSL VPN

Protocols

PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, OpenVPN (Since f/w v1.4.0)

LAN-to-LAN VPN

Teleworker-to-LAN VPN

Encryption

MPPE 40/128 bit

Hardware-based AES/DES/3DES

Authentication

PAP, CHAP, MS-CHAP, MS-CHAPv2

MD5, SHA1, SHA2-256

Pre-Shared Key, Digital Signature (X.509)

mOTP

Advanced

Hub-and-Spoke Topology support

DHCP over IPsec

VPN Redundancy for Load Balancing or Failover

FIREWALL

NAT

One-to-One Port Redirection

Range-to-Range Port Redirection

Range-to-One Port Redirection

Server Load Balance

DMZ Host

ALG: SIP, H.323

VPN Pass-Through: PPTP, L2TP, IPsec

UPnP 500 sessions

Firewall Filter

IP Filter

IPv6 Filter

Country Filter

MAC Address Filter

Object-based Configuration

Scheduled Enable/Disable

Content Filtering

Application Filter

URL Keyword Filtering

Category Filtering (subscription required)

DNS Keyword Filtering

Web Features Filtering

QQ Filter

IP-Based Policy

User-Based Policy

Scheduled Enable/Disable

Attack Protection

DoS Defence

BANDWIDTH MANAGEMENT

Bandwidth Policy

Session Limit

Bandwidth Limit

IP-Based Policy

User-Based Policy

Scheduled Enable/Disable

Quality of Service

Layer 3 QoS (TOS/DSCP)

4-Level Priority with user-defined classification

Bandwidth Borrowing

Guaranteed bandwidth for VoIP traffic

NETWORK FEATURES

Dynamic DNS

DNS Security

GVRP

IGMP Proxy

SMB File Sharing

FTP Server

User Authentication

Local User Database

RADIUS Server

Active Directory/LDAP

MANAGEMENT

Configuration

Web Interface: HTTP, HTTPS

Command-Line Interface: Telnet, SSH

TR-069 via VigorACS

Configuration File Export & Import

F/W Upgrade

TFTP, HTTP, FTP, TR-069

Admin Access Control

2-level Administration Privilege

Access from the Internet

Access List

Brute Force Protection

Monitoring

Dashboard

Syslog

SMS/E-mail Alert

TR-069 via VigorACS

SNMP v2, v2c, v3

Port Mirroring

Central Management

Wireless Controller for up to 50 VigorAP

20 Vigor Switch

16 Vigor Router (CVM)
