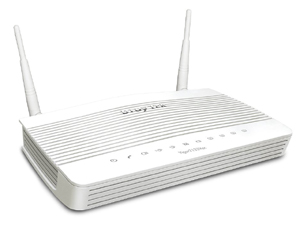

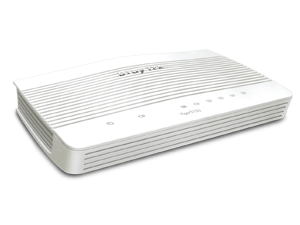

Draytek Vigor2133 Series Routers
Avaiklable Stock (QTY: 20+)
DV2133 $ 209.99 Inc-Gst
DV2133N $ 258.99 Inc-Gst
DV2133AC $ 354.99 Inc-Gst
DV2133VAC $ 401.99 Inc-Gst
2 Year Nationwide Warranty
Extended warranties available
Prices Exclude Shipping
Draytek Vigor 2133 Series
Single WAN, Firewall VPN Router for Home or SOHO.
Product Overview
The DrayTek Vigor2133 Series high-performance router is developed in compliance with the super-fast broadband architecture. Vigor2133 Series features 1 Gigabit Ethernet WAN port that can connect to any type of Internet Access, you may also add 3G/4G backup via the 2 USB ports.
The support of 802.1Q VLAN on WAN enables the router to provide triple-play services to your home network. Besides being a reliable Internet gateway, Vigor2133 Series offer abundant of business-grade features, such as Firewall, Content Filtering, VPN, Bandwidth Management, which makes it also a perfect solution for home office and teleworkers, it also comes with variants that have 2 FXS ports and supports VoIP gateway.
Product Comparison
Draytek DV2133 Ethernet Wired only router.
Draytek DV2133N Ethernet Wired and Wireless N router.
Draytek DV2133AC Ethernet Wired and Dual Band Wireless (AC) router.
Draytek DV2133VAC Ethernet Wired and Dual Band Wireless (AC) router with 2 x FXS (VoIP) ports.
Features
- Gigabit Ethernet WAN port
- 2 USB ports for 3G/4G backup or network storage
- 2 Simultaneous VPN Tunnels, including up to 2 SSL VPN
- SPI Firewall with content filtering by application, URL keyword, and web category
- VoIP function with dual FXS port (Vac model)
- Bandwidth Management & Intelligent VoIP QoS to optimize call quality
- Central Management for VigorAP
- Compliant with Central Management Software VigorACS 2
Built-in 11ac Wi-Fi (ac/Vac model)
Vigor2133 Series comes with the variants which have 802.11ac dual-band Wi-Fi integrated, delivers throughput up to 867 Mbps. Business-grade features are included, such as AirTime Fairness, Router-Assisted Roaming, and Band-Steering (for ac/Vac model) which ensure a smooth wireless connection for HD videos, gaming, and internet phones for home.
High-Performance VPN
The Vigor2133 Series has also integrated the VPN features, which allows up to 2 concurrent VPN connections. Vigor2133 Series can establish a LAN-to-LAN VPN connecting the local network to the main office, so that all the host on the local network can access the office network without dial-up a VPN individually. Vigor2133 Series can also be the VPN server, that allows access to its local network from a remote site.
A wide variety of VPN protocols are supported, including PPTP, L2TP, IPsec, IKEv2, L2TP over IPSec, and also SSL VPN – a type of VPN based on the very common encryption method which is used by all the HTTPS websites.
While the traditional VPN protocols might be filtered by the firewall and NAT of public networks, SSL VPN will be passed as long as the HTTPS is allowed. DrayTek also offers free official client App for Windows, iOS, and Android.
Bandwidth Management with Intelligent VoIP QoS
The Vigor2133 Series has the “VoIP QoS” feature to guarantee the priority for VoIP calls, this will ensure good call quality even when the Internet bandwidth is limited. In addition, the bandwidth consumption of each LAN client can be managed via Session Limit and Bandwidth Limit feature. You may also set up the “Smart Bandwidth Limit” to apply bandwidth limit only to the PCs which are running inappropriate applications, such as P2P download.
HARDWARE
Interface
1 x GbE WAN port
4 x GbE LAN port
2 x USB 2.0 port
2 x FXS port (Vac model)
Factory Reset Button
Power On/Off Switch
Power
12V @ 2A
Max. Power Consumption: 24 watts
Temperature
Operating: 0°C ~ 45°C
Storage: -25°C ~ 70°C
Dimension (mm)
207 (L) x 131 (W) x 42 (H)
(8.1″ x 5.2″ x 1.7″)
WAN
PPPoE Client
DHCP Client
Static IP
PPTP/L2TP
802.1Q VLAN Tagging
Triple-Play Applications
3G/4G Backup
IPv6
PPP
DHCPv6 Client
Static IPv6
TSPC
AICCU (AYIYA/Heartbeat)
6rd
6in4 Static Tunnel
Connectivity Detection
ARP
Ping Probe
LAN MANAGEMENT
VLAN
Up to 8 VLAN
802.1Q Tag-based VLAN
Port-based VLAN
DHCP Server
Up to 4 IP Subnet
Bind-IP-to-MAC
Custom DHCP Option
DNS Control
Local Name Server
Conditional DNS Forwarding
Hotspot Portal
Authentication by Click-Through, Social Login, and SMS PIN
Custom Portal Page
URL Redirection
Walled-Garden
ROUTING
Static Route
30 IPv4 Static Routing Rules
40 IPv6 Static Routing Rules
Dynamic Routing
RIP v2
Policy Routing
10 Policy-based Routing Rules
Criteria: Protocol, Source IP, Destination IP, Destination Port
Failover options
VPN
Performance
Up to 2 concurrent tunnels
Max. 2 concurrent SSL VPN
Protocols
PPTP, L2TP, IPsec, L2TP over IPsec, IKEv2
LAN-to-LAN VPN
Teleworker-to-LAN VPN
Encryption
MPPE 40/128 bit
Hardware-based AES/DES/3DES
Authentication
PAP, CHAP, MS-CHAP, MS-CHAPv2
MD5, SHA-1
Pre-Shared Key, Digital Signature (X.509)
mOTP
Advanced
Hub-and-Spoke Topology support
NAT-Traversal (NAT-T)
Dead Peer Detection (DPD)
DHCP over IPsec
Single-Armed VPN
FIREWALL
NAT
One-to-One Port Redirection
Range-to-Range Port Redirection
Open Ports
Port Triggering
DMZ Host
ALG: SIP, RTSP, FTP, TFTP, H.323
VPN Pass-Through: PPTP, L2TP, IPsec
UPnP
Firewall Filter
IP-based Firewall Policy
Object-based Configuration
Schedule Enable/Disable
Content Filtering
URL Keyword Filtering
Category Filtering (subscription required)
DNS Keyword Filtering
Web Features Filtering
Attack Protection
DoS Defense
BANDWIDTH MANAGEMENT
Bandwidth Policy
Session Limit
Bandwidth Limit
IP-Based Policy
Scheduled Enable/Disable
Quality of Service
Layer 3 QoS (TOS/DSCP)
Layer 2 QoS (802.1p)
4-Level Priority with user-defined classification
Bandwidth Borrowing
Guaranteed bandwidth for VoIP traffic
APP QoS
NETWORK FEATURES
Dynamic DNS
DNS Security
RADIUS Client
Bonjour
IGMP Proxy
IGMP Snooping
SMB File Sharing
WIRELESS LAN (N/AC/VAC Models)
Standards
802.11 b/g/n (2.4G)
802.11 a/n/ac (5G)
SSID
Up to 4 per radio
SSID-based 802.1Q VLAN
Radio Management
Auto Channel Selection
Auto Channel Width (2.4G)
Wi-Fi Scheduling
Security
WEP, WEP-802.1x, WPA-PSK, WPA-802.1x, WPA2-PSK, WPA2-802.1x
Hidden SSID
Client Isolation
Access Control per SSID
WPS
Advanced
AirTime Fairness
Band Steering
(ac/Vac model)
WMM
WDS
Bridge
Repeater
VoIP (VAC Model)
General
Protocol: SIP, RTP/RTCP
12 SIP Registrars
Jitter Buffer: 180 ms
G.168 line echo-cancellation
Call Services
Call Hold/Retrieve
Call Waiting
Call Waiting with Caller ID
Call Transfer
Call Forwarding (Always, Busy, No Answer, Busy or No Answer)
Call Barring (Incoming / Outgoing)
DND (Do Not Disturb)
MWI (Message Waiting Indicator) (RFC-3842)
Hotline
ZRTP
Dial Plan
Phone Book
Digit Map
Call Barring
Regional
Voice Codec
G.711 a/u law
G.726 32Kbps
G.729 A/B
DTMF Tone
In band (default)
Out band (RFC-2833)
SIP Info
MANAGEMENT
Configuration
Web Interface: HTTP, HTTPS
Command-Line Interface: Telnet, SSH
TR-069 via VigorACS
Configuration File Export & Import
Compliant with the configuration file exported from Vigor2132
F/W Upgrade
TFTP, HTTP, TR-069
Admin Access Control
2-level Administration Privilege
Access from the Internet
Access List
Monitoring
Dashboard
Syslog
SMS/E-mail Alert
TR-069 via VigorACS
SNMP v2, v2c, v3
Central Management
Wireless Controller for up to 2 VigorAP
