Fanvil H3 Hotel  IP Phone

$ 112.99 Inc-Gst

Available Stock (QTY: 50+)



1 Year Nationwide Warranty

Extended warranties available

Prices Exclude Shipping

PSU Not Included

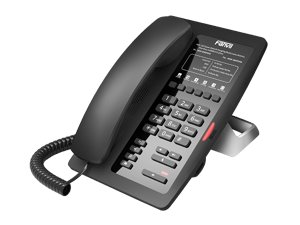

Fanvil H3 Standard Hotel IP Phone.

The new Fanvil H3 IP Phone is a Hotel phone with succinct design and high cost performance greatly

improve production efficiency.



Highlights

• Concise and fashionable product appearance
• Economical and Environmentally friendly product concepts
• Easy installation and configuration
• Support for fast Ethernet – adaptive 10/100mbps network port, support PoE power supply.
• High Interoperability – Compatible with major platforms: 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.



Generic

1 SIP Line ? POE Enable or Optional External Power Supply

Handset(HS) / Hands-free(HF)

Desktop

Economically and Environmental friendly package

Industrial Standard Certifications: CE/FCC



Call Features

Call out / answer

Mute / Unmute (microphone)

Call Hold / Resume ? Call Waiting

Call Transfer(Attended/Unattended)

Speed dial

Intercom

Redial

Voice Message ? Hot Line



Phone Features

Call logs with missed calls/ incoming calls/ outgoing calls. Max support 600 records(web)

Dial without registration ? LED light

Programmable DSS keys ? Action URL / Active URI

Web dial



Audio

Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB

Wideband CODEC: G.722

Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length

Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)

Background Noise Estimation (BNE) / Noise Reduction (NR)

Packet Loss Concealment (PLC)

Dynamic Adaptive Jitter Buffer up to 300ms ? DTMF: In-band, Out-of-Band – DTMF (RFC2833) / SIP INFO
Networking

10/100Mbps Ethernet, dual bridged port for PC bypass

IP Configuration: Static / DHCP / PPPoE

Network Access Control: 802.1x

VPN: L2TP / OpenVPN

VLAN

QoS



Protocols

SIP2.0 over UDP/TCP/TLS

RTP/RTCP/SRTP

STUN

DHCP

PPPoE

802.1x ? L2TP

OpenVPN

SNTP

FTP/TFTP

HTTP/HTTPS

TR069



Deployment & Maintenance

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP/PNP/TR069

Web Management Portal

Web-based Packet-dump

Configuration Export / Import

Firmware Upgrade ? syslog



Physical Specifications

Keypad: 26 keys, including, 6 DSS Key,

4 Function keys (Hold, Call Transfer, Redial, MWI)

12 Standard Phone Digits keys

2 volume Control keys, Lower/Increase 1 Mute 1 Hands-free

HD Handset (RJ9) x1

Standard RJ9 Handset Wire x1

1.5M CAT5 Ethernet Cable x1

RJ9 Phone Jacket x1: Handset x1

RJ45 Ethernet Port x2: Network x1 (802.3AF POE Class 2 Enabled),

PC x1 (Bridged to Network)

1 USB 2.0 (Only used for mobile phone charging)

DC Power Input: 5V / 1A

Power Consumption: Idle – 1.8W~2.5W, Peak – 3W~4.5W

Working Temperature: 0~40?

Working Humidity: 10~65%

Colour: Black

Device Dimensions: 194 x 152 x 132mm

Gift Box Dimensions: 225 x 210 x 125mm

Outer CTN Dimensions: 515 x 435 x 245mm (8 PCS)
