Fanvil X4 & X4G Enterprise Colour IP Phones

X4   $ 150.99 Inc-Gst

X4G $ 163.99 Inc-Gst



1 Year Nationwide Warranty

Extended warranties available

Prices Exclude Shipping

PSU Not Included

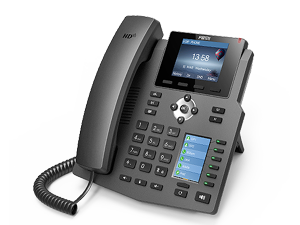

FANVIL X4 and X4G Enterprise IP Phones

A New Enterprise Phone with Intelligent DSS Key-mapping LCD Display.



What’s the difference ?

The X4 features Dual 100Mbps LAN ports.

The X4G features Dual Gigabit LAN ports.



The X4/X4G is a feature-rich sip phone for business. The 4-Line IP Phone has been designed by pursuing ease of use in even the tiniest details. Dual 10/100 Mbps(X4G: 10/100/1000 Mbps) network ports with integrated PoE are ideal for extended network use.

Delivering a superb sound quality it features a rich visual experience. With second DSS colour screen, the IP Phone supports up to 30 DSS keys which improve work efficiency. Using standard encryption protocols to perform highly secure remote provisioning and software upgrades.

The new Fanvil X4 IP Phone is a high-end enterprise desktop phone which comes with an intelligent DSS Key-mapping LCD to increase enterprise users’ productivity at a cost-effective price.



Display Features

DSS Key-mapping LCD – 6DSS keys corresponded to the LCD display to provide dynamic DSS/BLF functions up to five pages at virtualised total 30DSS keys.



Highlights

• Fast / Gigabit Ethernet – 10/100/1000Mbps Ethernet with POE enabled.
• Economic and Environmental Friendly design with Elegant housing.
• High Interoperability – Compatible with major platforms:
• 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.



Generic

4 SIP Lines

HD Voice

POE Enabled

2 LCDs (Main + DSS)

Handset(HS) / Hands-free(HF) / Headphone(HP) mode

Intelligent DSS Keys

Desktop / Wall-mount installation

Optional External Power Supply

Economical and Environmentally friendly package

Industrial Standard Certifications: CE/FCC



Call Features

Call out / answer / reject

Mute / Unmute (microphone)

Call Hold / Resume ? Call Waiting

Intercom

Caller ID Display

Speed Dial

Anonymous Call (Hide Caller ID)

Call Forwarding (Always/Busy/No Answer)

Call Transfer (Attended/Unattended)

Call Parking/Pick-up (depending on server)

Redial/Auto-Redial

Do-Not-Disturb (per line / per phone)

Auto-Answering (per line)

Voice Message (on server)

Local 3-way Conference ? Hot Line ? Hot-Desking



Phone Features

Phonebook (500 entries)

Remote Phonebook (XML/LDAP)

Call log (600 entries, in/out/missed)

Black/White List Call Filtering

Screensaver

Voice Message Waiting Indication (VMWI)

Programmable DSS/Soft keys

Network Time Synchronization

Support Plantronics Wireless headset (Through Plantronics APD-80EHS Cable)

Support Recording (Through PBX Server)

Action URL / Active URI

CSTA



Audio

HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)

Wideband ADC/DAC16KHz Sampling

Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB

Wideband CODEC: G.722

Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length

Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)

Background Noise Estimation (BNE) / Noise Reduction (NR)

Packet Loss Concealment (PLC)

Dynamic Adaptive Jitter Buffer up to 300ms

DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO



Networking

Physical: 10/100Mbps(X4), 10/100/1000Mbps(X4G)

Ethernet, dual bridged port for PC bypass

IP Configuration: Static / DHCP / PPPoE

Network Access Control: 802.1x

VPN: L2TP (Basic Unencrypted) / OpenVPN

LLDP

QoS

RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)



Protocols

SIP2.0 over UDP/TCP/TLS

RTP/RTCP/SRTP

STUN

DHCP

PPPoE

LLDP

802.1x ? L2TP (Basic Unencrypted)

OpenVPN

SNTP

FTP/TFTP

HTTP/HTTPS

TR069



RFCs:

354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/

2976/3261/3262/3263/3264/3265/3268/3311/

3489/3611/3711/4346/4566/5630/5865/6035



Deployment & Maintenance

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIP/PNP/TR069

Web Management Portal

Web-based Packet Dump

Configuration Export / Import

Phonebook Import/Export

Firmware Upgrade

Syslog



Physical Specifications

Main LCD x1: 2.8 inch (320×240) colour-screen LCD

DSS Key-mapping LCD x1: colour screen LCD

Keypad: 38 keys, including

4 Soft-keys 6 Function keys: Hold, Call forward,

Conference, Phonebook, Call logs, Redial

5 Navigation keys 12 Standard Phone Digits keys

3 Volume Control keys, Up/Down/Mute (Microphone)

1 Hands-free key

6 DSS Keys with tri-colour LED

1 Page-Jump/Configuration (PJC) key

HD Hands-free Speaker (0~7KHz) x1

HD Hands-free Microphone (0~7KHz) x1

HD Handset (RJ9) x1

Standard RJ9 Handset Wire x1

1.5M CAT5 Ethernet Cable x1

RJ9 Phone Jacket x2: Handset x1, Headphone x1

RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 2 Enabled), PC x1 (Bridged to Network)

DC Power Input: 5V/600mA(X4) 5V/1A(X4G)

Power Consumption: (X4)Idle –1.2W~1.9W, Peak – 2.4W~3.5W

(X4G)Idle – 1.8W~2.5W, Peak – 3W~4.5W

Working Temperature: 0~40?

Working Humidity: 10~95%

Dual-Functional Back Rack x1: Desktop Stand / Wall-mount

Colour: Black

Device Dimensions: 196 x 169 x 173mm(Desktop Stand)

Gift Box Dimensions:270 x 270 x 65mm

Outer CTN Dimensions: 555 x 340 x 290mm (10 PCS)
