iW223P Enterprise IP Phone

$ 99.99 Inc-Gst

Available Stock (QTY: 5+)



1 Year Nationwide Warranty.

Extended warranties available.

Prices Exclude Shipping.

PSU Not Included.

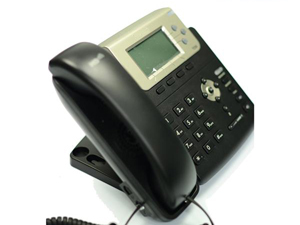

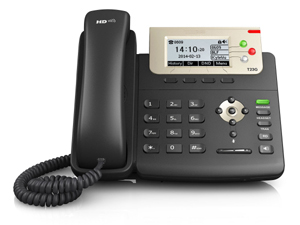

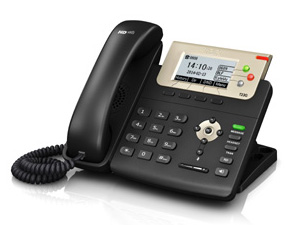

iW223P Enterprise HD IP Phone

The iW223P is a cost effective IP business phone featuring an intuitive user interface with secure provisioning and HD audio for excellent voice quality. This phone is ideal for those working in small and large office environments requiring Gigabit Ethernet and access to a variety of enhanced features.

The iW223P features intuitive user interface and enhanced functionality which make it easy for people to interact and maximize productivity. HD technology enables rich, clear, life-like voice communications, outsourced management options, flexible deployment and third-party communications applications.

As a cost effective IP solution, it helps users to streamline business processes, delivery a powerful, security and consistent communication experience for small and large offices environment.



Features

HD Voice

  •  HD Voice
  • 132 x 64-pixel graphical LCD
  • Two-port Gigabit Ethernet
  • PoE support
  • Up to 3 SIP accounts
  • Headset support
  • Wall Mountable
  • Supports expansion modules
  • Simple, flexible and secure provisioning options



Specification

Audio Features

  • HD voice: HD handset, HD speaker
  • Codecs: G.722, G.711(A/?), G.723.1, G.729AB, G.726, iLBC
  • DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
  • Full-duplex hands-free speakerphone with AEC
  • VAD, CNG, AEC, PLC, AJB, AGC



Phone Features

  • 3 VoIP accounts
  • Call hold, mute, DND
  • One-touch speed dial, hotline
  • Call forward, call waiting, call transfer
  • Group listening, SMS, emergency call
  • Redial, call return, auto answer
  • Local 3-way conferencing
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Set date time manually or automatically
  • Dial plan
  • XML Browser
  • Action URL/URI
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)



Directory

  • Loal phonebook up to 1000 entries
  • Black list
  • XML/LDAP remote phonebook
  • Intelligent search method
  • Phonebook search/import/export
  • Call history: dialed/received/missed/forwarded



IP-PBX Features

  • Busy Lamp Field (BLF)
  • Bridged Line Apperance(BLA)
  • Anonymous call, anonymous call rejection
  • Hot-desking, emergency call
  • Message Waiting Indicator (MWI)
  • Voice mail
  • Call park, call pickup
  • Intercom, paging
  • Music on hold
  • Call completion
  • Call recording



Display and Indicator

  • 132×64-pixel graphical LCD with backlight
  • LED for call and message waiting indication
  • Dual-color (red or green) illuminated LEDs for line status information
  • Intuitive user interface with icons and soft keys
  • National language selection
  • Caller ID with name, number



Feature keys

  • 45 keys including 13 freely programmable keys
  • 8 features keys: message, headset, hold, mute, trans, redial, conf, hands-free speakerphone
  • 4 context-sensitive “soft” keys
  • 6 navigation keys
  • Volume control keys



Interface

  • 2xRJ45 10/100M Ethernet ports
  • Power over Ethernet (IEEE 802.3af), class 2
  • 1xRJ9 (4P4C) handset port
  • 1xRJ9 (4P4C) headset port
  • 1XRJ12 (6P6C) EXT port:



Supports up to 6 Expansion Modules for an attendant console application

Other Physical Features

  • External universal AC adapter (optional): AC 100~240V input and DC 5V/1.2A output
  • Power consumption (PSU): 1.2-1.9W
  • Power consumption (PoE): 1.8-2.7W
  • Dimension(W*D*H*T): 273mm*200mm*158mm*58.5mm
  • Operating humidity: 10~95%
  • Operating temperature: -10~50°C



Management

  • Configuration: browser/phone/auto-provision
  • Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
  • Auto-provision with PnP
  • Zero-sp-touch, TR-069
  • Phone lock for personal privacy protection
  • Reset to factory, reboot
  • Package tracing export, system log



Network and Security

  • SIP v1 (RFC2543), v2 (RFC3261)
  • Call server redundancy supported
  • NAT transverse: STUN mode
  • Proxy mode and peer-to-peer SIP link mode
  • IP assignment: static/DHCP/PPPoE
  • HTTP/HTTPS web server
  • Time and date synchronization using SNTP
  • UDP/TCP/DNS-SRV(RFC 3263)
  • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
  • SRTP for voice
  • Transport Layer Security (TLS)
  • HTTPS certificate manager
  • AES encryption for configuration file
  • Digest authentication using MD5/MD5-sess
  • OpenVPN, IEEE802.1X
  • IPv6



Package Features

  • Qty/CTN: 5 PCS
  • N.W/CTN: 6.9 KG
  • G.W/CTN: 7.6 KG
  • Giftbox size: 285mm*240mm*110mm
  • Carton Meas: 580mm*295mm*250mm
