iW240EXP Expansion Module

$ 134.99 Inc-Gst

Available Stock (QTY: 5+)



1 Year Nationwide Warranty.

Extended warranties available.

Prices Exclude Shipping.

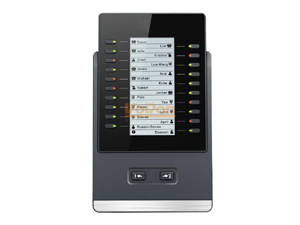

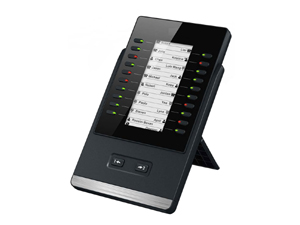

iW240EXP LCD Expansion Module

The iW240EXP Expansion Module is designed to enhance the flexibility and call-handling capacity of the iW246S, iW246G, iW248S and iW248G IP Phone. It features a backlit 160×320 Graphic LCD and provides two pages of 20 flexible buttons, paired with a dual-colour LED.

The iW240EXP Expansion Module is designed for use with the iW246S, iW246G, iW248S and iW248G executive colour screen IP Phone, and expand the functional capability of the iW246G/S or iW248G/S to a whole new level. It features a large graphical 160×130 pixel LCD screen, and offers two pages of 20 flexible buttons that can be programmed to support up to 40 various features.

The iW240EXP Expansion Module can thus support productivity-enhancing features such as BLF/BLA, speed dialling, call forward, call transfer, park, pickup and many other operations.

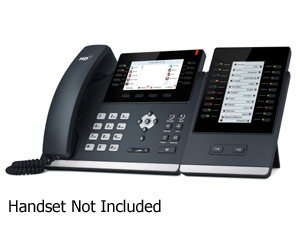

Up to 6 x iW240EXP Expansion Modules can be connected to a the iW246S, iW246G, iW248S and iW248G for attendant console applications, adding up to 240 additional buttons.

Up to 3 x iW240EXP Expansion Module can be powered by the IP Phone they are connected to otherwise a conventional power supply (5V/1.2A) is required where more than three Expansion Modules are integrated with an IP phone.



Features

Rich visual experience with 160×320 pixel graphic LCD

20 physical keys each with a dual-colour LED

40 programmable keys supported on two page views

2 independent control keys for fast switch pages

Daisy-chain 6x iW240EXP Expansion Modules for up to 240 keys

Supports BLF/BLA, speed dialling, call pickup, etc.

Stand with 2 adjustable angles

Wall mountable

Use with iW246S, iW246G, iW248S or iW248G Executive Colour Gigabit IP Phone



Display

160×320 pixel graphic LCD with 16-level grey scales

LCD Backlight

Supports 2 page views

Different icons for each function shown on the LCD screen

Features Keys and Indicator

20 physical keys each with a dual-colour LED

20 additional keys via dual-page switch

2 independent control keys are used for fast page switching



Programmable for a wide variety of operations, including:



Shared line

BLF List

Call Park

Conference

Call forward

Group pickup

Group listening

LDAP

Pick UP

XML Browser



Physical Features

Wall mountable

Stand with 2 adjustable angles

Expansion module (=2) is powered by the host iW246G IP Phone

Supports up to 6x daisy-chain connected LCD Expansion Modules per IP Phone

2x RJ-12 (6P6C) ports for Data-IN and Data-OUT

Dimensions: 127mm x 213mm x 167mm x 45mm (WxDxHxT) – 5″ x 8.4″ x 6.8″ x 1.8″

Operating temperature: -10-50°C (14-122°F)

Operating humidity: 10-95%
