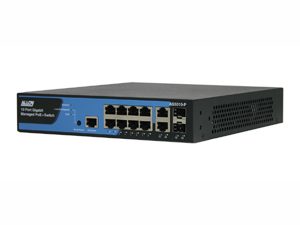

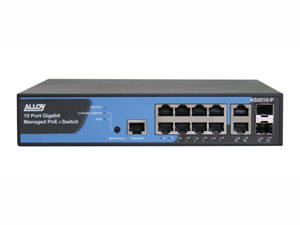

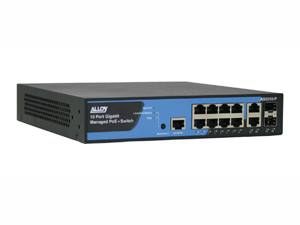

Alloy AS5010-P Managed POE Ethernet Switch

Available Stock (QTY: 20+)

$ 444.99 Inc-Gst



3 Year Nationwide Warranty

Extended warranties available

Prices Exclude Shipping



ALLOY AS5010-P 10 Port Layer 3 Lite Managed PoE+ Switch with 10x 10/100/1000Mbps

Ports + 2x Paired 100M/1Gb SFP Ports



The Alloy AS5010-P Layer 3 Lite Managed Gigabit POE+ Switch consists of 10x 10/100/1000Mbps Gigabit Copper UTP Ports and 2x paired dual speed 1000M/100M SFP Ports. With a comprehensive range of the latest generation Layer 3 Lite, Layer 2+, QoS, Security, PoE and Management features, the AS5010-P switch is ideal for businesses of all sizes.

All SFP Ports support both 100M and 1000M SFP modules allowing easy upgrade paths for existing cabling and network infrastructure.

The AS5010-P switch provides IEEE 802.3af and the latest 802.3at ‘PoE+’ Power over Ethernet. With all standalone RJ-45 ports supporting PoE+, devices such as IP Phones and Wireless Access Points can now be connected directly to the network with data and power supplied over a single UTP cable, reducing deployment and maintenance costs and making it much easier to install devices exactly where they are required.

With support of 802.3at PoE+, up to 30 watts of power can be supplied per port, so power hungry devices such as Pan Tilt Zoom IP Security Cameras can be connected directly to the network.

All of the Alloy AS Series switches feature Alloy’s latest user friendly responsive Web GUI, allowing ease of configuration on all devices including PC, Tablet and Phones. Alloy have also included a bundle of unique features including a built in Device Management System (DMS), advanced PoE features and support for Alloy’s Android and iOS Apps.



  • Managed Layer 2+ and Layer 3 Lite GbE Connectivity
  • Built in Device Management System (DMS)
  • High performance
  • Enterprise-class security features
  • 802.3at high power PoE plus standard
  • PoE Port configuration and scheduling
  • IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
  • Dual Speed SFP ports supporting both 100M and 1000M SFP Modules
  • Limited Lifetime Warranty



Port Configuration

Total Ports: 10

10/100/1000Mbps RJ-45 Ports: 10

SFP Ports: 2x 100M/1000M

Console Port: DB9



Poe Power Capacity

Total PoE Power: 130W

PoE Pins: 1, 2, 3 & 6

PoE Per Port: 802.3af; 15.4W, 802.3at; 30.0W

PoE Per Port (Full Load): 16.25W



Hardware Performance

Forwarding Capacity: 14.88Mpps

Switching Capacity: 20Gbps

MAC Table: 8K

Jumbo Frames: 9K

Latency: 1000M Copper Ports: < 2.7ms, 1000M SFP Ports: < 1.1ms



Memory and Processor

SDRAM: 128MB

Flash: 32MB



Voltage and Frequency

Input Voltage: 100-240 VAC

Frequency: 50 ~ 60 Hz



Environmental

Operating Temperature: 0 to 40 C

Storage Temperature: -20 to 70 C

Operating Humidity: 10% to 90% non-condensing



Weights and Dimensions

Dimensions (WxHxD): 220 x 44 x 242mm

Weight: 2.3Kg
