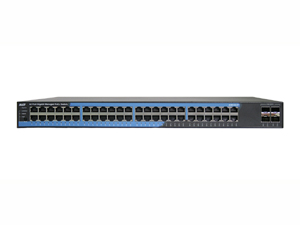

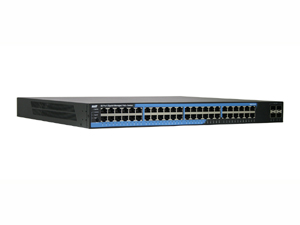

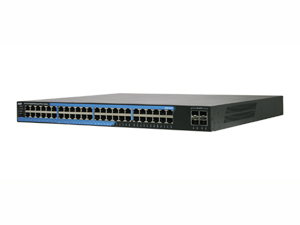

Alloy AS5152-P Managed POE Ethernet Switch

Available Stock (QTY: 10+)

$ 2351.99 Inc-Gst



3 Year Nationwide Warranty

Extended warranties available

Prices Exclude Shipping



ALLOY AS5152-P 52 Port Layer 3 Lite Managed PoE+ Switch with 48x 10/100/1000Mbps

Ports + 4x 1000M/10Gb SFP Ports.



The Alloy AS5152-P Layer 3 Lite Managed Gigabit POE+ Switch consists of 48x 10/100/1000Mbps Gigabit Copper UTP Ports and 4x dual speed 10G/1000M SFP Ports. With a comprehensive range of the latest generation Layer 3 Lite, Layer 2+, QoS, Security, PoE and Management features, the AS5152-P switch is ideal for businesses of all sizes.

All SFP Ports support 1000M and 10Gb SFP modules allowing easy upgrade paths for existing cabling and network infrastructure.

The AS5152-P switch provides IEEE 802.3af and the latest 802.3at ‘PoE+’ Power over Ethernet. With all standalone RJ-45 ports supporting PoE+, devices such as IP Phones and Wireless Access Points can now be connected directly to the network with data and power supplied over a single UTP cable, reducing deployment and maintenance costs and making it much easier to install devices exactly where they are required.

With support of 802.3at PoE+, up to 30 watts of power can be supplied per port, so power hungry devices such as Pan Tilt Zoom IP Security Cameras can be connected directly to the network.

All of the Alloy AS Series switches feature Alloy’s latest user friendly responsive Web GUI, allowing ease of configuration on all devices including PC, Tablet and Phones. Alloy have also included a bundle of unique features including a built in Device Management System (DMS), advanced PoE features and support for Alloy’s Android and iOS Apps.



  • Managed Layer 2+ and Layer 3 Lite GbE Connectivity
  • 4x 10GbE SFP Ports for high speed desktop and backbone applications
  • Built in Device Management System (DMS)
  • High performance
  • Enterprise-class security features
  • 802.3at high power PoE plus standard
  • PoE Port configuration and scheduling
  • IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
  • Dual Speed SFP ports supporting 1000M and 10Gb SFP Modules
  • Limited Lifetime Warranty



Port Configuration

Total Ports: 52

10/100/1000Mbps RJ-45 Ports: 48

SFP Ports: 4x 1000M/10Gb

Console Port: DB9



POE Power Capacity

Total PoE Power: 370W

PoE Pins: 1, 2, 3 & 6

PoE Per Port: 802.3af; 15.4W, 802.3at; 30.0W

PoE Per Port (Full Load): 7.7W



Hardware Performance

Forwarding Capacity: 130.944Mpps

Switching Capacity: 176Gbps

MAC Table: 32K

Jumbo Frames: 10K

Latency: 1000M Copper Ports: < 3.9ms, 1GB SFP: < 6.1ms; 10GB SFP: < 4.7µs



Memory and Processor

SDRAM: 128MB

Flash: 32MB



Voltage and Frequency

Input Voltage: 100-240 VAC

Frequency: 50 ~ 60 Hz



Environmental

Operating Temperature: 0 to 40 C

Storage Temperature: -20 to 70 C

Operating Humidity: 10% to 90% non-condensing



Weights and Dimensions

Dimensions (WxHxD): 442 x 44 x 385mm

Weight: 5.8Kg
