Epygi QX500 PBX System

In Stock (Call)



$ 10% off

1 year Warranty

Extended warranties available



Epygi QX500 IP PBX Telephone System,

Sales, Installation, Maintenance and Support.



Product Overview

The QX500 IP PBX is designed for offices with as many as 500 users. The QX500 can support up to 500 IP devices and 80 concurrent calls. SIP trunking allows for the QX500 to connect directly to an ITSP with no additional equipment.

The QX500 includes a firewall and SIP Intrusion Detection for optimal security. E1, T1, FXO, ISDN BRI and FXS ports can easily be provided using the Epygi QX Gateways.



Interconnection with QX Gateways

Use QXFXO4, QXISDN4, QXE1T1, QXFXS24 to bridge into legacy platforms and medias.



PBX Features

  • 100x SIP Extensions.
  • Expandable to 500x SIP Extensions,
  • 80 concurrent calls
  • Auto Attendant with Customizable Scenarios
  • Call blocking, forwarding, hold, transfer,
  • Call Relay and call waiting
  • Caller ID detection and hiding caller ID
  • Voicemail system
  • Voicemail notification via SMS/email
  • Caller ID-based voicemail profile
  • Call park, call pickup, paging, intercom
  • Distinctive ringing
  • Speed dial
  • Many Extension Ringing
  • Receptionist
  • Call hunting
  • Call back from Auto Attendant
  • Emergency Call Alert500 User IP PBX
  • Hold music
  • Call history
  • Do Not Disturb
  • Global speed dial
  • Find Me/Follow Me
  • Unified Messaging
  • Three-way conferencing
  • G3 fax support: T.38 and clear channel fax
  • Universal Extension Recordings
  • Busy auto redial
  • Directory assistance
  • Phone Book
  • Authorized Phones
  • Dial plans (call routing), time of day routing
  • Scheduling, Day/Night Switching
  • Alarm
  • Dial & Announce (D&A)
  • Class of Service
  • Calling Cost Control*
  • Call queue
  • Redundancy*
  • Automatic Call Distribution (ACD)*
  • Epygi ACD Console (EAC)*
  • Call Recording (48 ports)*
  • Barge-In*
  • Conference Server*
  • Audio (48 ports)/Video (24 ports)
  • iQall Mobile Toggling



Voice and Video Features

Voice Coding:

  • G.711, G.726 (16, 24, 32, 40 Kbps),
  • G.729A, iLBC (13,33 kbit/s, 15,2 kbit/s);
  • VAD, CNG, G.168 echo cancellation
  • G.722 and G.722.1 pass-through
  • point-to-point HD call
  • Video Coding:
  • H.263, H.263+ and H.264 pass-through
  • point-to-point video call
  • VoIP Encryption:
  • SRTP
  • VoIP Signalling:
  • SIP v2, SIP/TLS
  • DTMF:
  • In band & out of band signalling support

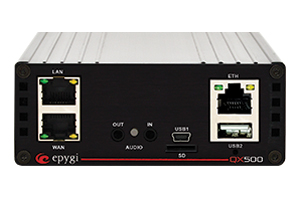

Hardware Summary

  • Ethernet LAN port (10/100/1000)
  • Ethernet WAN port (10/100/1000)
  • Audio In port
  • Audio Out port
  • SD slot



Rack-mountable devices

Measurements:

8.0” x 4.0” x 1.6” (20.5 x 10.5 x 4.0 cm)



Weight:

1.26 lbs. (570 g)



Operating temperature:

41°F – 104°F (5°C – 40°C)



Storage temperature:

41°F – 140°F (5°C – 60°C)



Non-condensing humidity:

5% – 90%



Powering Options

Input: 85-264VAC, 47-63Hz, AC

Input from type AB mini-USB,

Input from 5VDC/2A adapter



Power Consumption

2.7W (idle), 6.5W (max)
