iWolf WC8350ESC PBX Telephone System Starter Kit

Qty In Stock ( 30+)



$ 2689.50 Inc-GST

2 Year Warranty

Extended warranties available

The iWolf WC8350ESC kit is a complete phone system “Ready to Go”.

It comes complete with 3 Executive Handsets and an expansion board.



IP based Telephony PBX starter kit. (Hardware System)



Grow to 250 Extensions and 200 concurrent calls.

12 months free Nation Wide service and support on 1300 184 411

Predictive (Auto) Dialer modules available.



SIP, VoIP, PSTN, ISDN, 4G, Cellular Legacy compatible system.

Multi-Tenant Options for managed offices.

Grow  to 200 SIP, VoIP, ISDN, PRI, T1, E1 Channels.



Make Unlimited National calls to Land Lines and Mobile Phones from only $20.00 per month.

Alternatively you can use the Voice Provider of your choice. Telstra or Optus or VoIP or Other.



NATION WIDE Service & Support

Phone: 1300 184  411



See feature checklist below



Contents Includes;

1 x WC8350ESC IP PABX Telephony System.

1 x Executive Reception handset.

1 x Expansion board for reception handset.

2 x Corporate class executive handsets.

2 Year Replacement Warranty

12 months free support



NATION WIDE Service & Support

Phone: 1300 184  411



Robust and User Friendly

A complete hybrid system combining the cost saving and advanced features of IP telephony with the FailBack security of a traditional phone system. Bundled with Corporate class IP phones



VoIP (SIP) Trunks.

All you need to do is choose an Internet Telephone Service Provider (ITSP) to host your VoIP (SIP) phone number. We can help you with that if are new to VoIP.



Traditional POTS (PSTN) analogue lines.

Configured and ready to go with 2 FXO ports. Expandable to 12 ports.



FXS

Expandable to include multiple FXS ports that support analogue devices such a fax machine or cordless DECT phone.



ISDN

Optional ISDN interface modules are available to support BRI, T1, E1 and J1 infrastructures.



Please Note:

Our prices include a 24 month hardware warranty and 12 months free technical support and installation advice.

Call for a free quote if you want us to install it for you !

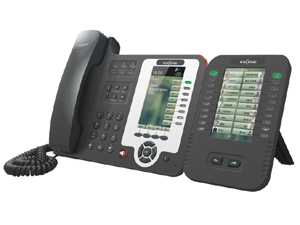

Receptionists Executive Handset With Console.

Executive IP Phone 480×272 HD Colour LCD, Personalised Screen option. 8 SIP accounts, Adjustable bracket, HD Voice, 7 Program Keys, BLF, XML, Headset compatible,

2xRJ45, PoE. With Max. 6 Expansion Modules up to 192 keys. Wall Mountable.

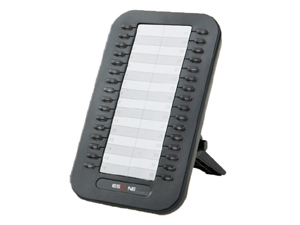

Expansion board for reception phone.

32 programmable keys each with a three-color LED.

BLF, Speed dial, Conference, Call waiting, DND.

Expansion module is powered by the host phone.

Daisy-chain 6 modules for 192 programmable keys.

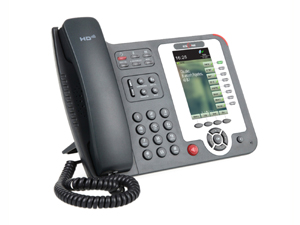

Corporate Class Executive Handsets

Executive IP Phone 480×272 HD Colour LCD, Personalised Screen option. 8 SIP accounts, Adjustable bracket, HD Voice, 7 Program Keys, BLF, XML, Headset compatible,

2xRJ45, PoE. With Max. 6 Expansion Modules up to 192 keys. Wall Mountable.



Feature packed. This system includes.

Expandable to 250 extensions (IP Handsets).

Supports 200 concurrent  SIP (VoIP) calls.

2 x FXO ports (For analogue PSTN lines) expandable to 12 FXO, 12 FXS or a mix of both,

Virtual Fax Server and Fax to Email built in. Receive faxes in PDF format ready to file electronically.

Analogue device support VIA optional FXS modules. Connect fax machines or cordless DECT phones.

Remote extension support. Connect your home office to HQ and work from home.

Voicemail and Voice Mail to Email.

Auto Attendant. Multi Level IVR.

Hot Desking

Conference Room

Call queuing with position in the queue announcement and options to leave voicemail.

Line Monitoring

Digital Dictation integrated.

Conversation recording

Call Barge in

Ring Groups, Pickup Groups.

Music on Hold. A library of audio files available or add your own custom advertising voice over files.

Call Park, Call Transfer, Call Forward, Call Follow Me, Call Back.

Hunt Groups, Shared line appearance.

Instant messaging compatible. MSN, Yahoo, Gtalk, ICQ.

Video phone support

T38 support for physical fax over VoIP.

Blue Tooth support

Integration with CRM and Outlook address book (single click dialing)

12 month free support VIA our Helpdesk and access to our online customer portal

Renewable “Service Level Agreements” (SLAs) available.



Conference Room

Conduct multiuser conferences with up to 20 concurrent callers. Control the conference by setting a mediator PIN. Set conference attributes such as user PIN, conversation recording, auto announcements, Listen only, wait for mediator, set start and finish times and maximum number of participants.



Installation Options

This system is ready to go with two analogue (PSTN Telstra) FXO ports. It has been configured for a receptionist style

scenario but can be configured to meet any call flow routine. With loads of other features to take advantage of this

system is perfect for any small to medium sized business.



To help you save money we offer our clientele the following configuration options.



1)    Configured modified to your specifications by our certified technicians before we ship it to you. You perform the install onsite. It’s an easy 3 step process that the average Joe can complete I less than an hour. Direction from our helpdesk is available free of charge.



2)    Let us install the system onsite for you. iWolf’s Alfa team are fully trained to install VoIP and VoDSL systems.  With Installers NATION WIDE we cater for everyone, from large corporate enterprises to small businesses.



3)    As part of our service portfolio iWolf offers its customers the convenience of a fully automated churn from analogue to digital communications. With your given authorisation, iWolf’s integration team can liaise with your ISP and ITSPs to ensure the seamless deployment of your new system from end 2 end.



WC8350ESC system features include

Call recording with a Web interface to search recordings

Voicemail and Voicemail-to-Email functionality

Flexible IVR

Voice synthesis support

Integrated Echo Canceller

Support for video phones

Integrated DHCP server to

Call parking allowing calls to be picked up at any extension.

Call Detail (CDRs) report within you can search calls based on different criteria as date, extension number, etc

Billing report from which you can filter by destination, source

Report of channels used by technology (SIP, ZAP, IAX, Local, H323)

Support for call queues including static and dynamic agents

Conference Center. Allows setup of temporary scheduled conferences or static conference rooms via Web Interface.

Supported protocols: SIP, IAX, H323, MGCP, SKINNY, etc

Supported codecs: ADPCM, G.711 (A-Law & ?-Law), G.722, G.723.1, G.726, G.729, GSM, iLBC, OPUS

Support for analog interfaces as FXS/FXO (PSTN/POTS)

Support for digital interfaces as E1/T1/J1 through protocols as PRI/BRI/R2

Support for Bluetooth interfaces through mobile phones

Caller ID supported.

Multiple Trunk support.

Incoming and outgoing routes with support dial pattern matching which gives flexibility

Follow-me support

Support for ring groups

Support for paging and intercom for supported IP Phones

Support for call routing based on Time Conditions

Support for PIN sets

Direct Inward System Access (DISA) – Direct access to the PBX via External Line

Callback

Online and contextual embedded help, integrated to the administrative Web interface.

System resources monitor

Access control to the Web interface based on the ACL concept

Interface to manage updates

Backup/Restore

Server date/time/timezone configurable



FAX

Integrated  Fax server

The fax functionality is administrable via Web

Fax visor integrated. The faxes can be downloaded from the Web in PDF format *

Fax-to-email application

The email template (from fax-to-email) can be customized

Access control for fax clients (white list)

Can be integrated with the WinPrint plugin. This application allows to print any document to a virtual fax from Windows
